Gator Edge Flex and Rigid

Gator Edge Flex and Rigid

Description

Gator Edge Flex and Rigid is made with 100% Polypropylene Co-Polymer. This will give it great strength as well as providing greater flexibility. We have a Rigid model which is ideal for straight applications and have a Flex model that can be used for all curved applications such as walkways, paths, entrances etc. Both the Rigid and Flex can be locked together with the "Twist & Lock" connection system.

Strong Lateral Support

A triangular angle at all key points has been engineered to provide a strong lateral support, essential for the load transfer on the paving units. The Rigid model can be modified into a Flex by simply cutting the connector between each triangular angle.

Gator Edge Flex and Rigid
Features

  • The Flex can connect to the Rigid.
  • Uses a "Twist & Lock" connection system.
  • Will not corrode.
  • Easy-to-use.
  • Available in flexible or rigid edges.
  • Xtra versatile.
  • Xtra robust system.
  • Xtra support strength.
  • UV resistant.
  • Come in 8-ft lengths.
  • Use with Gator Nails.

For Use On

Gator Edge is an excellent choice to help define alleys, driveways or sidewalks.
Gator Edge is designed for straight or curved installation. It is especially easy to use and quick to install.




COVERAGE

Products

Retail Size

Units per Pallet

Gator Edge Flex

1 piece : 8 linear feet
1 Mini-pack = 6 pieces = 48 linear feet
1 Master pack = 4 Mini packs = 192 linear feet

28 Master-packs = 5376 linear feet

Gator Edge Rigid

1 piece : 8 linear feet
1 Mini-pack = 6 pieces = 48 linear feet
1 Master-pack = 4 Mini packs = 192 linear feet

28 Master-packs = 5376 linear feet




INSTRUCTIONS

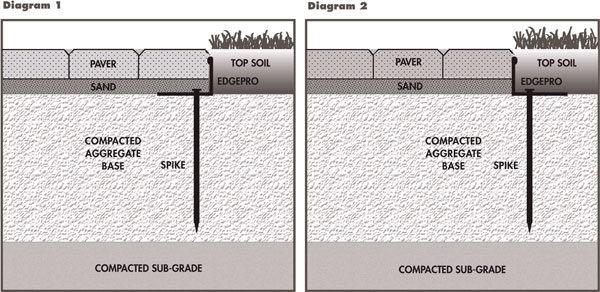

  1. It can be installed either before or after the paver installation.
  2. Use one 10" nail every foot for greater support strength.
  3. Use the Twist & Lock feature to secure the edging lengths together.
  4. Nail at every Twist & Lock junction, this will ensure continuous lateral support.

PLEASE NOTE

Both rigid and flexible pieces can be joined together.

Transferable Lifetime Warranty Learn more
