Wall Systems

Cambridge Stone Veneer

Additonal Information:

PDF Document Cambridge Stone Veneer Product Spec
PDF Document Cambridge Veneer Installation Guidelines
PDF Document Cambridge Veneer Installation Instructions
PDF Document Why Use Manufactured Stone Veneer
PDF Document ESR-3111 WF Compliance
PDF Document ESR3111 Evaluation Report
Molded from time worn, natural stone found in ledges and valleys of native America, Cambridge Stone Veneer is offered in 3 distinctly different styles. Canyon Stone retains all of the dimensional characteristics of the handpicked pieces from which it was cast. The randomly placed, yet tailored, linear patterns created with Castle Stone will mimic the grand facades of medieval manors, while the rustic look of Tuscan Fieldstone is reminiscent of rural, old country cottages.

Choose From 3 Distinct Styles


Canyon Ledge | Chestnut


A warm mixture of earth tone tans and browns with a hint of charcoal make chestnut a very natural looking stone. Chestnut is neutral enough to accent almost any color home, and has a deep and textured look to add a homey feel. Chestnut tones are earthy and understated yet add sophistication to any look.





Chestnut



Canyon Ledge | Santa Fe


Consisting of Indian Brown, Sandy Buff and Charcoal, Santa Fe is the only stone color we blend by hand to create a Southwestern feel. Santa Fe adds warmth and character to neutral tones.





Santa Fe



Canyon Ledge | Midnight Slate


Combinations of lighter and darker grays and charcoal with hints of autumn leaves highlighting this palette give midnight slate a three-dimensional feel. The crisp and classic shades of gray found in Midnight Slate exemplify the elegance only stone can add to a home.





Midnight Slate

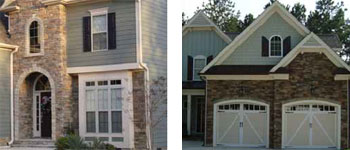

Canyon Ledge | Autumn Blend


A natural blending of forest green, canyon red, autumn leaves and sandy buff brings out the season of autumn blend. The combinations of these colors allow a designer to complement and decorate for that professional look. Autumn blend enhances any environment or season.





Autumn Blend















Technical Specifications ICC-ESR 3111

Testing of our stone is performed in accordance with ICC AC51 by an accredited testing engineering firm. Specimens were tested for various properties in accordance with AC51 sections 4.2 through 4.7. Refer to test result table below.

ASTM C109-05
Compressive Strength
Avg. 2374 psi
ASTM C190
Tensile Strength
Avg. 188,003 psi
ASTM C348
Flexural Strength
Avg. 4.77 MPa
ASTM C482
Shear Bond Strength
Avg. 92.74 psi
AC51-2008
Moisture Absorption
Avg. 9.5%
ASTM C67-03
Freeze - Thaw
Avg. -0.74% weight loss

Canyon Stone products meet the requirements and conditions of acceptance for ICC ES AC51 "acceptance criteria for precast stone veneer", approved February 2008, Effective March 1,2008.

50 Year Limited Warranty

Canyon Stone warrants its veneer products for 50 years against manufacturing defects when installed on buildings complying with local building codes and meeting manufacturers written instructions. This warranty excludes deterioration caused from chemicals, paints, wall movement, building settlement, and discoloration from oxidation and contaminates. Coverage is limited to the original purchaser, does not include labor, and is limited to the repair or replacement of the product.

Packaging

Our stones and accents are carefully stacked in framed wooden pallets yielding 120sf of flats. Pallets are then wrapped with a weather resistant cardboard. Kraft paper layers every other row to minimize scuffing of stones during transit. Smaller projects are packaged in Handy-Packs with 10sf of flats and 9 lf of corners.



Cast Stone Products Warranty: Cambridge Pavers, Inc. warrants to the original purchaser (with a proof of purchase) that should the Cast Stone products (Steps, Caps, Ledgestone Cast Stone, or Cast Stone Slab 3 Pc. Design Kit) installed according to industry standards and in compliance with our installation guidelines, prove defective, it will be replaced without cost. Replacement labor is not included. This Warranty is good for as long as the original purchaser owns the real property on which the Cast Stone was installed. Cast Stone products meet or exceed ASTM C672. The use of de-icing sales (sodium chloride (NaCl)) will alter the surface texture of these products over time. Cambridge cannot guarantee the color match of any replacement units. Cast Stone products can not be compacted.

Transferable Lifetime Warranty Learn more
